May 21

Written by: Michael Washington
5/21/2011 6:19 AM  RssIcon




Note: There is a third method covered at this link.

It is easy to create a LightSwitch application using your own custom user interface (UI), composed entirely of Silverlight Custom Controls. The article This Is How LightSwitch Does MVVM, covers the basics of how you bind Silverlight Custom Controls to LightSwitch Properties and Collections. This article demonstrates two ways to raise LightSwitch Methods (in a normal Silverlight MVVM applications these would usually be Commands), from a Silverlight Custom Control.


We first start with the project from the article: LightSwitch Procedural Operations: “Do This, Then Do That”.

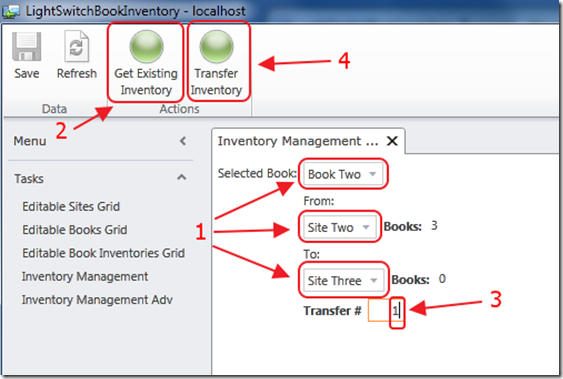

In that project, we built an application that allowed us to select a Book, two Sites, and Transfer books between them. First we press the “Get Existing Inventory” button to see the available inventory at the two sites. After entering the amount to transfer, pressing the “Transfer Inventory” button makes the transfer.

Using A Silverlight Custom Control


The first step is to add a Silverlight Class Library to the LightSwitch solution.


We can open the Silverlight project up in Expression Blend and design the UI.  In this example, we are using Alan Beasley’s buttons from one of his projects.


Both of the methods to call LightSwitch from a Silverlight control, require references to:

  • Microsoft.LightSwitch – ..\ClientGenerated\Bin\Debug\Microsoft.LightSwitch.dll
  • Microsoft.LightSwitch.Client – ..\ClientGenerated\Bin\Debug\Microsoft.LightSwitch.Client.dll

The Sheel Method


Sheel Shah, from the LightSwitch team showed me this method. We just double-click on the button in the designer, and enter the following code:



using System.Windows.Controls;
using Microsoft.LightSwitch.Presentation;
namespace SilverlightUI
{
    public partial class InventoryUI : UserControl
    {
        public InventoryUI()
        {
            InitializeComponent();
        }
        private void TransfeerInventoryButton_Click
            (object sender, System.Windows.RoutedEventArgs e)
        {
            // Get a reference to the LightSwitch DataContext
            var objDataContext = (IContentItem)this.DataContext;
            // Get a reference to the LightSwitch Screen
            var Screen =
                (Microsoft.LightSwitch.Client.IScreenObject)objDataContext.Screen;
            // Call the Method on the LightSwitch screen
            Screen.Details.Dispatcher.BeginInvoke(() =>
            {
                Screen.Details.Methods["TransfeerInventory"]
                    .CreateInvocation(null).Execute();
            });
        }
    }
}



That’s it. The advantage is that it really cannot get any simpler. The only disadvantage of this, is that code can break (if the method signature changes), and it wont show up at compile-time.

The Karol Method


Karol Zadora-Przylecki, from the LightSwitch team showed me this method.

First we switch to File View (you have to click on the LightSwitch project in the Visual Studio Solution Explorer first to see that button).


We create a class file in the Common project with the following code:



using System;
namespace LightSwitchApplication.UserCode
{
    public interface IInventoryManagement
    {
        void TransfeerInventory();
        void GetExistingInventory();
    }
}






We go to the LightSwitch screen that we plan to use our Silverlight Custom Control on, and click Write Code.




We enter code to inherit from the Interface we just created.

We use this code for the implementation:



    // Interface
    void UserCode.IInventoryManagement.TransfeerInventory()
    {
        TransfeerInventory_Execute();
    }
    void UserCode.IInventoryManagement.GetExistingInventory()
    {
        GetExistingInventory_Execute();
    }




We add a reference to the Common project in our Silverlight project.

We are then able to use the following code for the button event:



    private void GetInventoryButton_Click
        (object sender, System.Windows.RoutedEventArgs e)
    {
        // Get a reference to the LightSwitch DataContext
        var objDataContext = (IContentItem)this.DataContext;
        // Get a reference to the LightSwitch Screen
        var Screen =
            (Microsoft.LightSwitch.Client.IScreenObject)objDataContext.Screen;
        // Cast the LightSwitch Screen to our custom Interface
        // (that we put in the "common" project)
        var InventoryManagement =
            (LightSwitchApplication.UserCode.IInventoryManagement)Screen;
        // Call the Method on the LightSwitch screen
        Screen.Details.Dispatcher.BeginInvoke(() =>
        {
            InventoryManagement.GetExistingInventory();
        });
    }



See the article at this link for the steps on adding a Silverlight Custom Control to your LightSwitch screen.




When we run the project, we can call any Method (Command) on our LightSwitch screen.

It is suggested that you also read: This Is How LightSwitch Does MVVM, to fully understand how all of this is simply part of the MVVM pattern.

Note: There is a third method covered at this link.

Download

You can download the code at this link.
