With Visual Studio LightSwitch, you have a “get out of jail free card” in the use of Custom Silverlight Controls. With a Custom Silverlight Control, you can implement functionality that is outside the normal abilities of LightSwitch.

I’m sure your greatest fear is having to stand in front of the Chief Technology Officer, and explain why the LightSwitch application, that the company invested so much time and energy into, has to now be re-written as a regular Silverlight application because it “can’t perform the new requirements”.

Let’s put aside the fact that in normal business environments, you have several applications running side-by-side, and that would also work with LightSwitch. However, you may find that in most cases, you just need to create Silverlight Custom Controls, and plug them into LightSwitch.

Note: you need Visual Studio Professional (or higher) to create Custom Silverlight Controls.

The LightSwitch Sample Project


Make a new LightSwitch project.


Select Create a new Table.

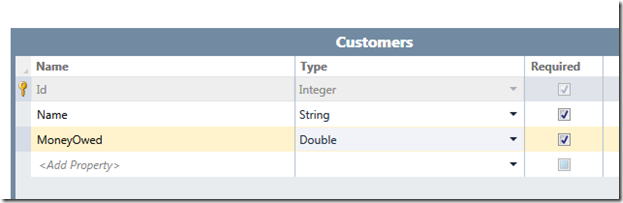

Call it Customers and add a Name and a MoneyOwed column.


Add a new Screen.


Add a List and Details Screen.


Hit F5 to run the project.

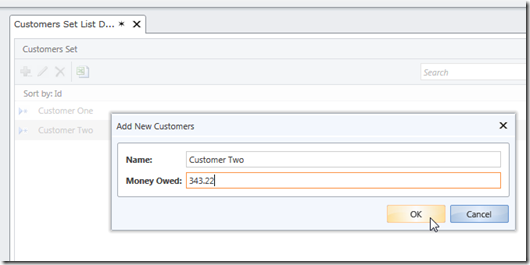

Run the application and enter some sample data.



Create The Custom Control


Add a new Project.


Create a Silverlight Class Library. Call it SilverlightCustomControls.


Select Silverlight 4.


The Project will show in the Solution Explorer, right-click on the Class1.cs file and Delete it.


You can put anything on a Silverlight Custom Control, so we will put a Silverlight Gauge on the page just to make a point.

Go to the Scott Logic site, and download Colin Eberhardt’s Radial Gauge Silverlight Control:

http://www.scottlogic.co.uk/blog/colin/2010/08/developing-a-very-lookless-silverlight-radial-gauge-control/


Unzip his download, and then select Add, then Existing Project…


Add his GagueControl project.


Select Add Reference in your Custom Silverlight Controls Project.


Add a Project reference to the GagugeControl Project.


Right-click on the Custom Silverlight Controls Project and add New Item…


Create a Silverlight User Control. Call it RadialGuage.xaml.


Grab the GaugeControl out of the Toolbox


… and drop it on the page designer.


Now, lets go back and open the Screen we created in the LightSwitch Project.

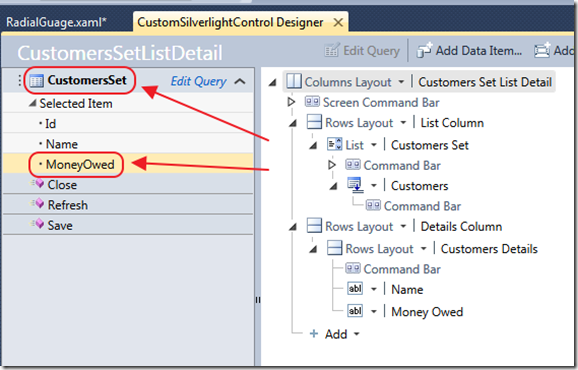

Notice that the collection is called CustomersSet and the field is called MoneyOwed.


Change the XAML markup for the Gauge to:

    <Grid x:Name="LayoutRoot" Background="White" Width="200" Height="200">
        <my:GaugeControl HorizontalAlignment="Left" Margin="10,10,10,10"
        Name="gaugeControl1" Value="{Binding Screen.CustomersSet .SelectedItem.MoneyOwed}"
        Maximum="1000" Minimum="0" VerticalAlignment="Top"  />
    </Grid>

Save the page and Build the project.



Consuming The Silverlight Custom Control

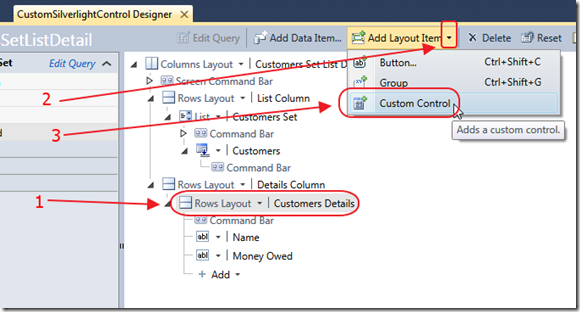

Return back to the LightSwitch Screen and click on the Rows Layout | Customers Details row and then click Add Layout Item then Custom Control.


Click the Add Reference Button.


Create a Project reference to your Custom Silverlight Controls project.


You will now be able to select the Custom Control you created.

Leave “Screen” in the “data” Text Box, because we programmed the binding in the Control to use the data coming from “Screen”, and click OK.

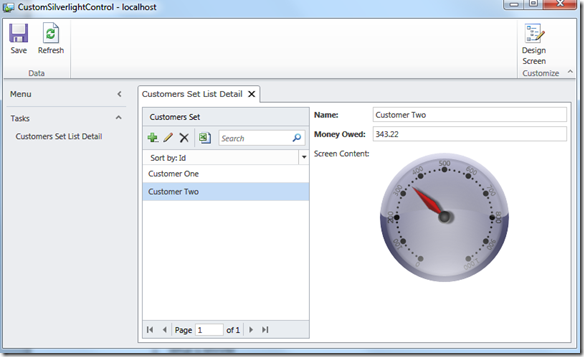

Now when we run the application, the Gauge reflects the money owed.



Special Thanks

A special thanks to Sheel Shah for explaining how to create the binding code.



Download code:

http://silverlight.adefwebserver.com/files/lightSwitch/CustomSilverlightControl.zip
