Sep 19

Written by: Michael Washington
9/19/2010 4:50 PM  RssIcon

This is part II to the article LightSwitch Student Information System.


In this installment, we will add Attendance to the system. We will use this opportunity to cover implementing Business Rules and Screen Permissions.


Eventually the Attendance form will look like the image above.


However, in this article ,the Attendance screen will look like the image above. We will cover creating a custom control for the Attendance in the next article.

Adding Attendance Table


Starting from the code posted in the last article, we add a new table…


We create an Attendance table with two fields.


In the Properties for the AttendanceCode field, click on Choice List.


Add the choices show above.


Click on the Relationship button.


Set the criteria you see above and click OK.

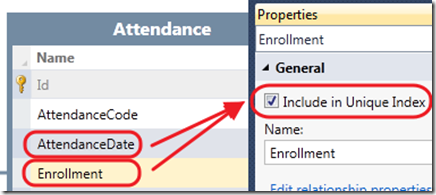

Click on the AttendanceDate and Enrollment fields, and click the Include in Unique Index box for each.

This will prevent duplicate attendance for accidently being entered.


Click the button to create a Screen for the table.


Create an Editable Grid Screen.

Hit F5 to run the project.


We are able to enter Attendance.

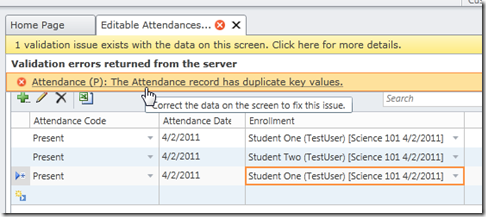

Notice that we are not able to enter duplicate attendance.

Stop the application, and return to the project in Visual Studio.

Business Rules

While it is an option to only enter valid records. We desire to implement Business Rules to assist users in not entering invalid data. For example, we already, do not allow duplicate Attendance (this is implemented by using the Include in Unique Index option)

LightSwitch automatically enforces referential integrity for most data (for example, you can only add Attendance to an Enrollment that already exists), but it cannot know what is valid when you have a table of transactions (records that represent changes to a single entity such as Attendance records for an Enrollment).

We will implement Business Rules for:

  • Enrollments
    • Do not allow orphan Attendance when changing the Start and Stop dates
  • Sections
    • Do not allow orphan Enrollments by changing the Start and Stop dates

(There are many more Business Rules that we could implement, but we want to keep this article simple, and show you sample code that you can re-use)


Open the Enrollment table.

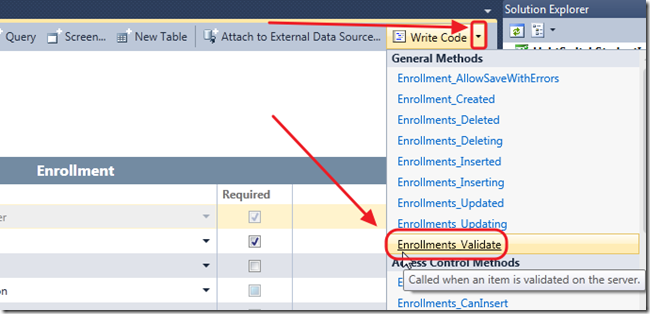

Click the Write Code dropdown, and select the Validate method.

Enter the following code:

        #region Enrollments_Validate
        partial void Enrollments_Validate(Enrollment entity, EntitySetValidationResultsBuilder results)
        {
            // Cannot start Enrollment before Section start date
            if (entity.StartDate < entity.Section.StartDate)
            {
                results.AddEntityError(String.Format("Cannot start this Enrollent before {0}",
                    entity.Section.StartDate.ToShortDateString()));
            }
            // Cannot stop Enrollment after Section stop date
            if ((entity.StopDate != null) && (entity.Section.StopDate != null))
            {
                if (entity.StopDate > entity.Section.StopDate)
                {
                    results.AddEntityError(String.Format("Cannot stop this Enrollent after {0}",
                        entity.Section.StopDate.Value.ToShortDateString()));
                }
            }
            // Cannot stop Enrollment if it orphans attendance
            if ((entity.StopDate != null) && (entity.Attendances.Count() > 0))
            {
                var result = from Attendancs in entity.Attendances
                             where Attendancs.AttendanceDate > entity.StopDate
                             orderby Attendancs.AttendanceDate descending
                             select Attendancs;
                if (result != null)
                {
                    if (result.Count() != 0)
                    {
                        results.AddEntityError(String.Format("Cannot stop this Enrollent before {0}",
                            result.FirstOrDefault().AttendanceDate.ToShortDateString()));
                    }
                }
            }
        }
        #endregion



Enter the following code for the Validate method for Sections:



        #region Sections_Validate
        partial void Sections_Validate(Section entity, EntitySetValidationResultsBuilder results)
        {
            // Cannot start Section after any Enrollments
            foreach (var item in entity.Enrollments)
            {
                if (entity.StartDate > item.StartDate)
                {
                    results.AddEntityError(String.Format("Cannot start this Section because an Enrollment starts on {0}",
                    item.StartDate.ToShortDateString()));
                }
            }
            // Cannot stop Section if it will orphan Enrollments
            if ((entity.StopDate != null))
            {
                foreach (var item in entity.Enrollments)
                {
                    if ((item.StopDate.HasValue) && (entity.StopDate < item.StopDate))
                    {
                        results.AddEntityError(String.Format("Cannot stop this Section because an Enrollment ends on {0}",
                        item.StopDate.Value.ToShortDateString()));
                    }
                }
            }
        }
        #endregion

Save the code and close the code window (very important, otherwise you will get an error when you try to run the application).




When you run the application, you will see that the Business Rules are enforced.

WARNING: If you create a rule that makes existing data invalid the application may not start up. You have to remove the rule and fix the data.

Screen Permissions

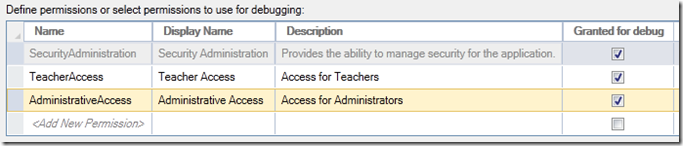

You will recall from the previous article that we created permissions.

We will now use those permissions to only allow Teachers access to the Home page and the Attendance page. We will do that by limiting access to all other pages to only those in the AdministrativeAccess role.

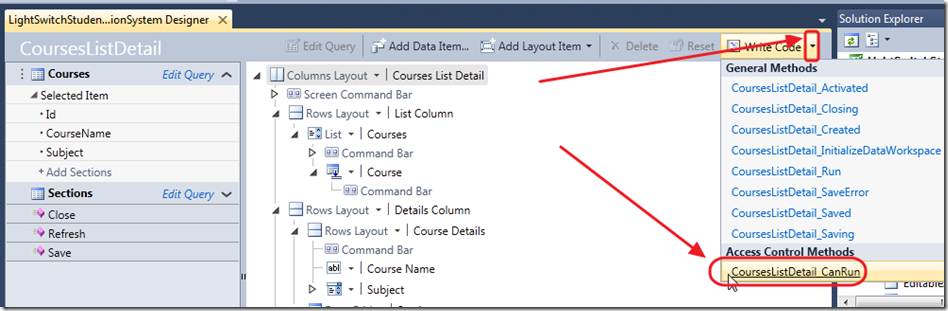

Open the CourseListDetail screen, and click the Write Code dropdown, and select the CoursesListDetail _CanRun method.

Enter the following code:

        partial void CoursesListDetail_CanRun(ref bool result)
        {
            if (Current.User.HasPermission(Permissions.AdministrativeAccess))
            {
                result = true;
            }
            else
            {
                result = false;
            }
        }

Do the same for all the other screens except the Home screen and the Attendance screen.

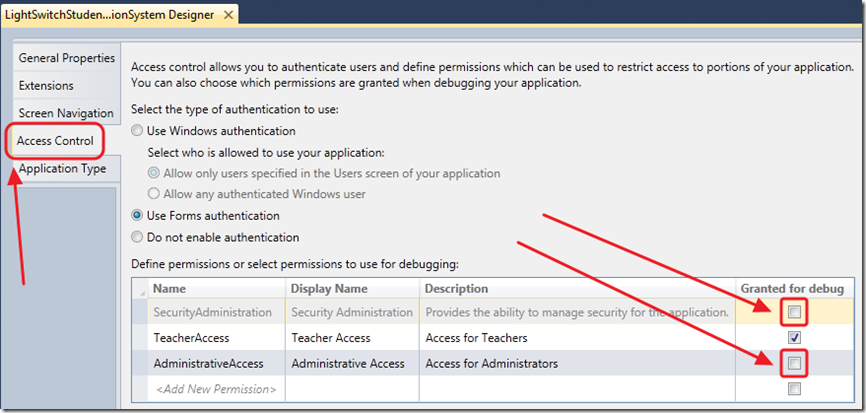

In Access Control, you can uncheck the box next to AdministrativeAccess and Security Administration, so you will not have those permissions when you are debugging as the Test User

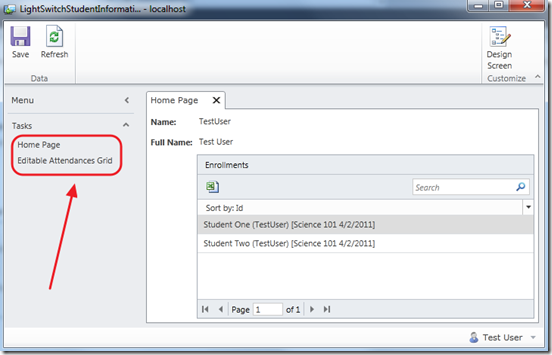

When you run the application, you will only have access to the Home screen and the Attendance screen.

You can download the source code here:

http://silverlight.adefwebserver.com/files/LightSwitch/LightSwitchStudentInformationSystem_Part2.zip

Further Reading

The LightSwitch Student Information System Series
