Written by:
Michael Washington
5/12/2011 4:19 AM
Printing in LightSwitch was previously covered here:
http://lightswitch.adefwebserver.com/Blog/tabid/61/EntryId/3/Printing-With-LightSwitch.aspx
The disadvantages of that approach are:
- You have to make a custom control / You have to be a programmer to make reports
- Printing in Silverlight renders images that are slightly fuzzy
In this article, we will demonstrate creating and printing reports in LightSwitch using Microsoft Report Viewer Control.
Note, you will need Visual Studio Professional, or higher, to use the method described here.

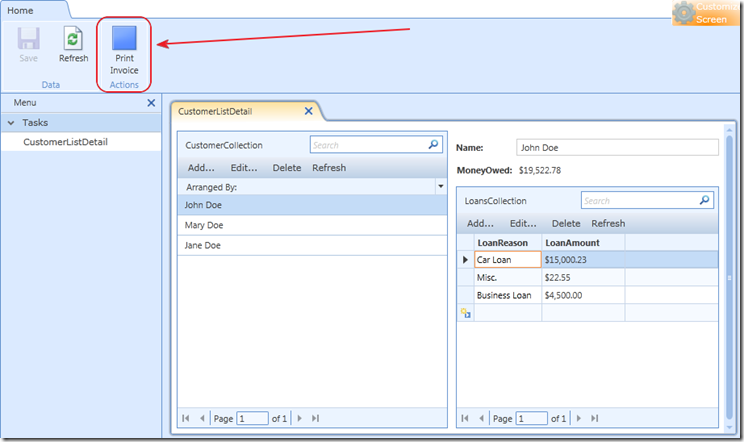

We want this Print Invoice Button to open the Report (that we will create later) and pass the currently selected Customer (so the Report will know which Customer to show).
First, add a reference to System.Windows.Browser, by switching to File View in the Solution Explorer, and right-clicking on References in the Client project.
Also, add a reference to Microsoft.VisualBasic.
Right-click on the Print invoice button and select Edit Execute Code.
In the object tree on the Screen, we replace all the previous code with the following code:
using System;
using System.Linq;
using System.IO;
using System.IO.IsolatedStorage;
using System.Collections.Generic;
using Microsoft.LightSwitch;
using Microsoft.LightSwitch.Framework.Client;
using Microsoft.LightSwitch.Presentation;
using Microsoft.LightSwitch.Presentation.Extensions;
using System.Windows.Printing;
using System.Windows;
namespace LightSwitchApplication
{
public partial class CustomersListDetail
{
partial void PrintInvoice_Execute()
{
// Only run if there is a Customer selected
if (this.Customers.SelectedItem != null)
{
Microsoft.LightSwitch.Threading.Dispatchers.Main.BeginInvoke(() =>
{
System.Text.StringBuilder codeToRun = new System.Text.StringBuilder();
codeToRun.Append("window.open(");
codeToRun.Append("\"");
codeToRun.Append(string.Format("{0}", String.Format(@"{0}/Report.aspx?CustomerID={1}",
GetBaseAddress(), this.Customers.SelectedItem.Id.ToString())));
codeToRun.Append("\",");
codeToRun.Append("\"");
codeToRun.Append("\",");
codeToRun.Append("\"");
codeToRun.Append("width=680,height=640");
codeToRun.Append(",scrollbars=yes,menubar=no,toolbar=no,resizable=yes");
codeToRun.Append("\");");
try
{
System.Windows.Browser.HtmlPage.Window.Eval(codeToRun.ToString());
}
catch (Exception ex)
{
MessageBox.Show(ex.Message,
"Error", MessageBoxButton.OK);
}
});
}
}
#region GetBaseAddress
private static Uri GetBaseAddress()
{
// Get the web address of the .xap that launched this application
string strBaseWebAddress = System.Windows.Browser.HtmlPage.Document.DocumentUri.AbsoluteUri;
// Find the position of the ClientBin directory
int PositionOfClientBin =
System.Windows.Browser.HtmlPage.Document.DocumentUri.AbsoluteUri.ToLower().IndexOf(@"/default");
// Strip off everything after the ClientBin directory
strBaseWebAddress = Microsoft.VisualBasic.Strings.Left(strBaseWebAddress, PositionOfClientBin);
// Create a URI
Uri UriWebService = new Uri(String.Format(@"{0}", strBaseWebAddress));
// Return the base address
return UriWebService;
}
#endregion
}
}
Deploy The Application and Add The Report

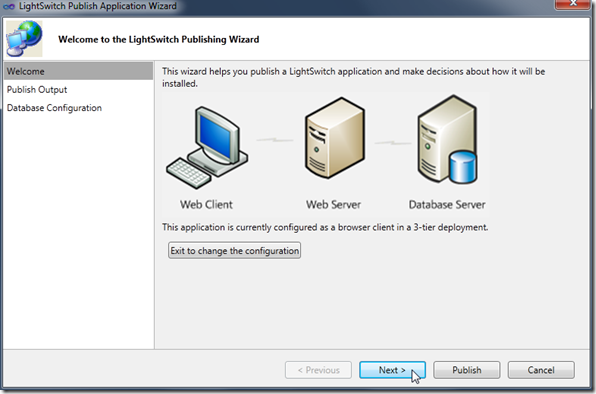

In the Properties for the project, change it to a Web application and click the Publish button.
It is recommended that you simply deploy the application to your local computer and then copy it to the final server after you have added the reports(s) .
After we have Deployed the application, we open the Deployed application in Visual Studio.
When the application is Deployed, a database is created (or updated). We will open this Database and add a View.

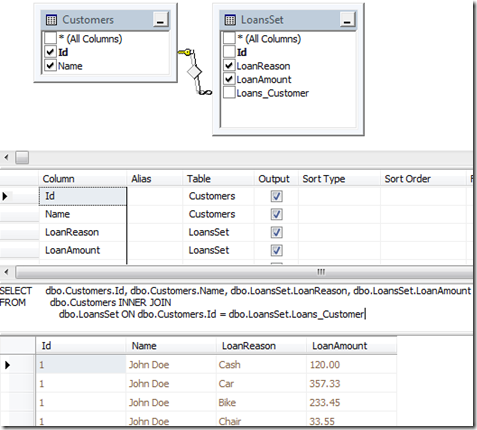

We design a View and save it.
In Visual Studio we Add New Item…

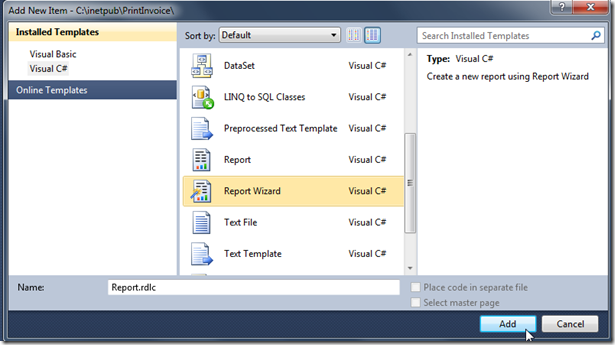

We add a Report to the project.

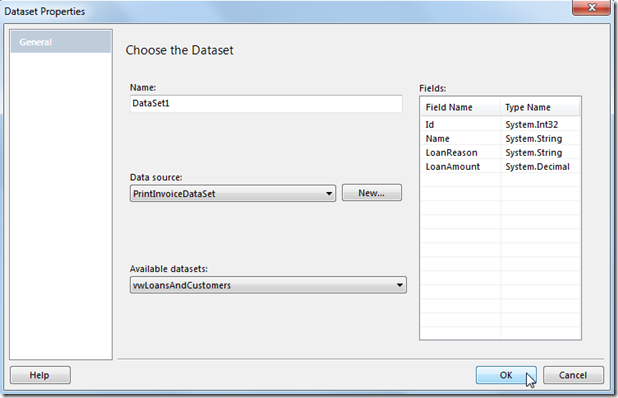

We use the New button to create a connection to the database. This connection is only used to design the Report.
We will add code in a later step that will provide data to the Report at run-time.

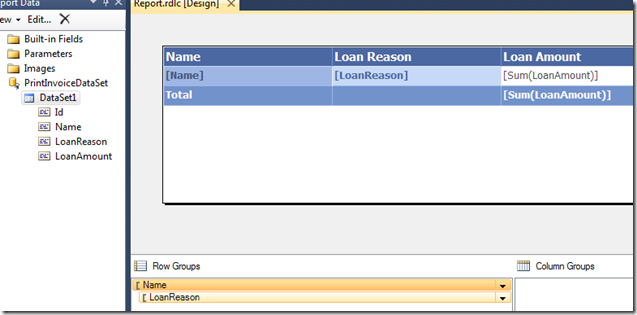

We complete the Report and save it.

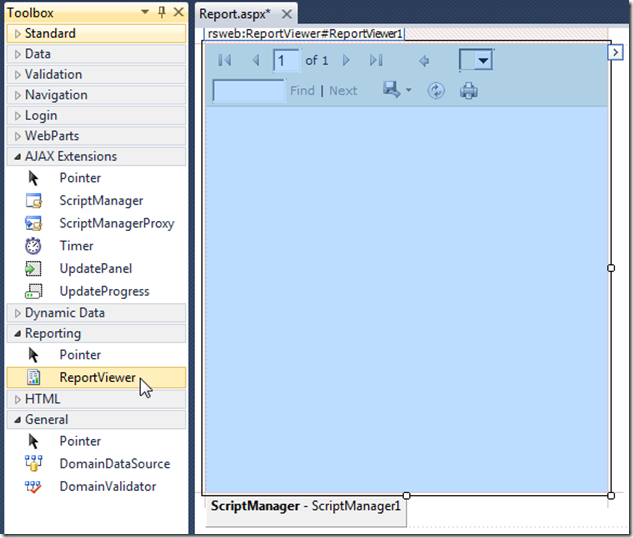

After designing the report, we place a Report Viewer Control on an .aspx page (we also need to add a ScriptManager control to the page).

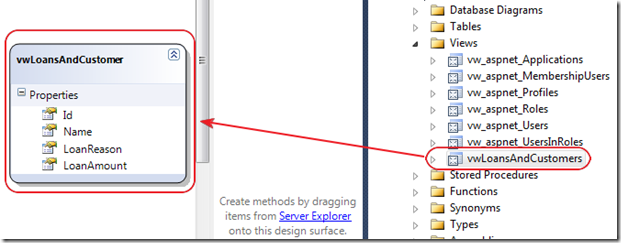

We add a Linq to SQL class to the project that contains the View.
The following code, in the code behind for the page, is used to accept the Report parameter (the selected Customer), and to display the Report in the Report Viewer Control.
public partial class Report : System.Web.UI.Page
{
protected void Page_Load(object sender, EventArgs e)
{
if (Request.QueryString["CustomerID"] != null)
{
if (!Page.IsPostBack)
{
ShowReportViewer();
}
}
}
#region ShowReportViewer
private void ShowReportViewer()
{
this.ReportViewer1.ProcessingMode = ProcessingMode.Local;
this.ReportViewer1.LocalReport.ReportPath = Server.MapPath("~/Report.rdlc");
ReportViewer1.LocalReport.DataSources.Add(
new ReportDataSource("DataSet1", LoadData()));
}
#endregion
#region LoadData
private DataTable LoadData()
{
int CustomerID = Convert.ToInt32(Request.QueryString["CustomerID"]);
DataClassesDataContext db = new DataClassesDataContext();
var result = from LoansAndCustomers in db.vwLoansAndCustomers
where LoansAndCustomers.Id == CustomerID
select LoansAndCustomers;
Utility objUtility = new Utility();
DataTable dt = objUtility.LINQToDataTable(result);
return dt.DefaultView.Table;
}
#endregion
}
Note, that this class is used to convert the Linq to SQL query into a DataTable needed by the DataSource for the Report.
// From: http://www.c-sharpcorner.com/UploadFile/VIMAL.LAKHERA/LINQResultsetToDatatable06242008042629AM/...
// ...LINQResultsetToDatatable.aspx
public DataTable LINQToDataTable<T>(IEnumerable<T> varlist)
{
DataTable dtReturn = new DataTable();
// column names
PropertyInfo[] oProps = null;
if (varlist == null) return dtReturn;
foreach (T rec in varlist)
{
// Use reflection to get property names, to create table, Only first time, others will follow
if (oProps == null)
{
oProps = ((Type)rec.GetType()).GetProperties();
foreach (PropertyInfo pi in oProps)
{
Type colType = pi.PropertyType;
if ((colType.IsGenericType) && (colType.GetGenericTypeDefinition()
== typeof(Nullable<>)))
{
colType = colType.GetGenericArguments()[0];
}
dtReturn.Columns.Add(new DataColumn(pi.Name, colType));
}
}
DataRow dr = dtReturn.NewRow();
foreach (PropertyInfo pi in oProps)
{
dr[pi.Name] = pi.GetValue(rec, null) == null ? DBNull.Value : pi.GetValue
(rec, null);
}
dtReturn.Rows.Add(dr);
}
return dtReturn;
}
Also note, that we don't actually pass the parameter to the Report Viewer control. With a .rdlc report, we simply provide the data for the report. We must filter the Linq query to filter the report.
What we are doing is passing the parameter to the .aspx page and then creating a query to pull up only the data we need and supplying it to the Report.
Note, you can see this site if you have any questions about the Report Viewer Control: http://www.gotreportviewer.com
When we run the Deployed application, select a Customer, and then click the Print Invoice Button…
The Report is displayed in a popup window.
You will need to use ASP.NET 4.0, and install the Microsoft Report Viewer 2010 Redistributable Package on the web server that displays the report.
Download
You can download the code at this link.
